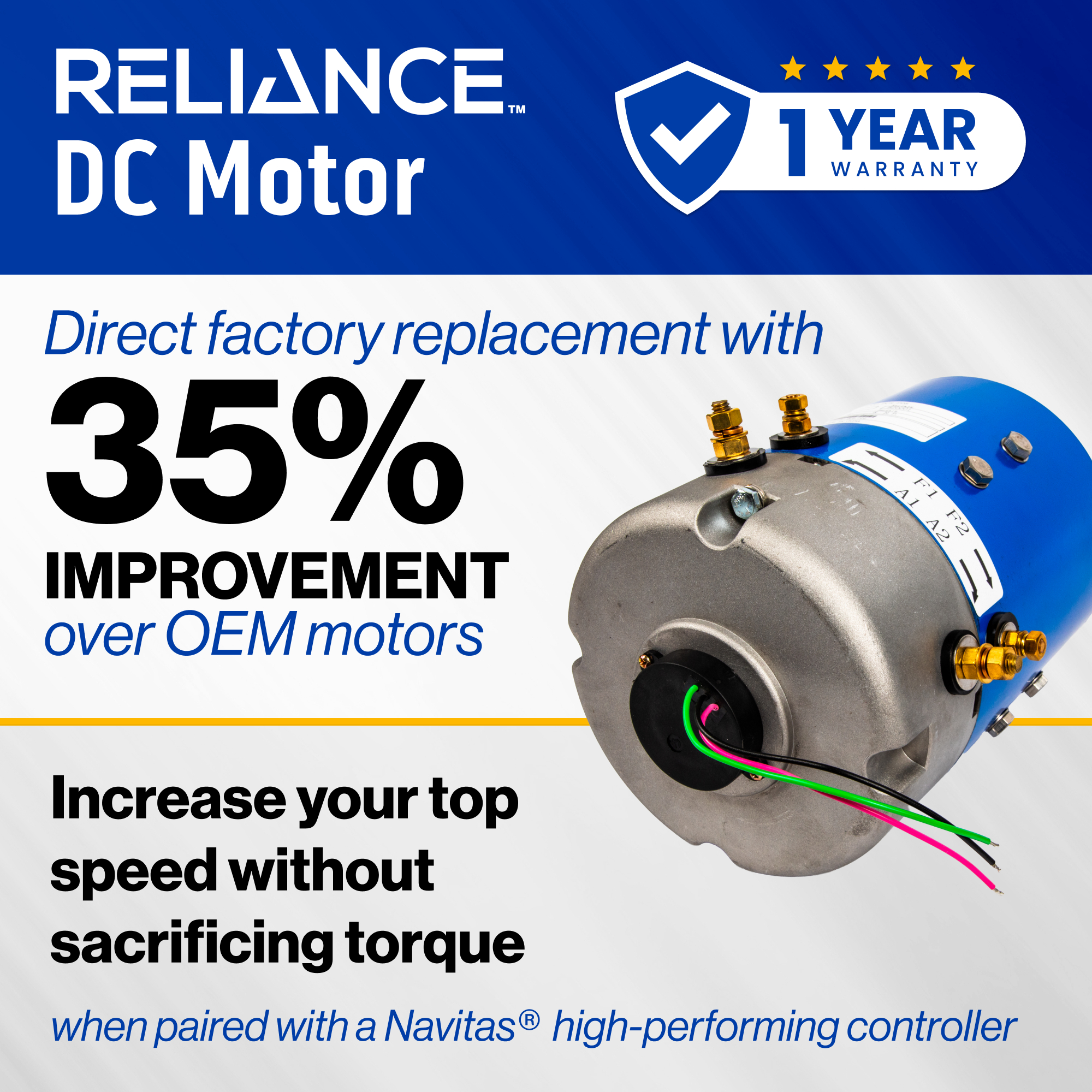

Motor Features:

• Club Car 48 volt DS IQ, Power Drive Plus, Precedent, Onward and Tempo high speed motor (Not a replacement for Series Motors)
• 10-spline coupler
• Direct factory motor replacement
• Includes a speed sensor/ magnet
• Includes a 1-year warranty
• With upgraded controller:
  • Speeds up to 24 mph at 48 volts
  • 20-25% torque increase
  • 9 HP peak at 48 volts

Controller Features:

• TSX 3.0 440AMP 36-48V Bluetooth Controller
• Cost effective improvement to increase the speed and power of a golf car
• The Navitas app allows you to monitor the vehicle's performance
  • Built-in speedometer
  • Gear indicator (Forward, Neutral, Reverse)
  • One-click Car Lock Out feature
  • Live battery voltage monitoring
  • Provides alerts that you can send directly to your technician/dealer by email
• New "Cruise mode" for higher top speed (Up to 15% faster)
  • Speeds up to 23 mph with stock 18" tires
  • Lower Speeds = Greater Range
• Up to 75% more raw power than a stock controller. Improved hill climb capability with 22/23" tires
• Use your stock motor, solenoid and existing wiring
• Plug and play installation, works with your existing motor and plugs directly into your carts wiring harness
• Control your regen braking in forward and reverse for added safety when driving or backing down inclines
• Use the "lock out feature" to lock in settings to control power and speed

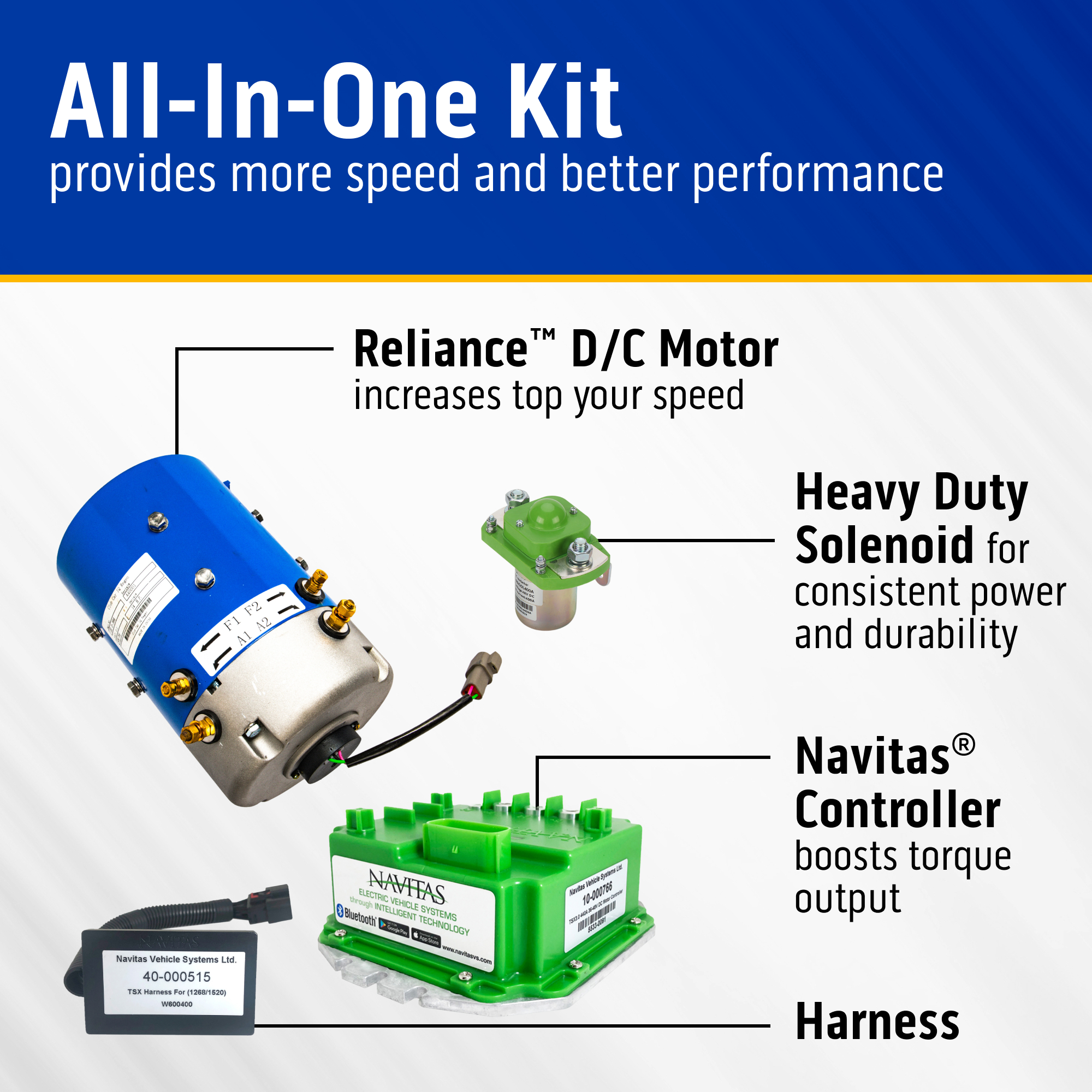

Kit Includes:

• Navitas TSX3.0 440A 36-48V DC Controller - 25-047
• Club Car Curtis 1510/1515 TSX Harness - 31923
• Bolt 48V HD Solenoid (36V Compatible) - 33-001
• Reliance Club Car IQ Regen 10-Spline High Speed Motor - 25-512

New Motor Break-In Instructions:

This motor is engineered to work with stock factory controllers and aftermarket controllers programmed with a custom, motor-specific field map. Using an incorrectly programmed controller may result in motor damage and will Void all warranties. Break-in Procedure for all new electric motors includes a "break-in period" to ensure the brushes properly seat against the commutator. Following this process will ensure optimal performance and longevity.

Follow these steps carefully:

• 1. Initial Drive: Drive the vehicle for 8–10 miles at varying speeds, taking care to accelerate gently during this period.
• 2. Temperature Monitoring:
  • Drive on a level surface, such as pavement or asphalt. Gradually accelerate and maintain full speed for 5–10 minutes. Then, stop and check the motor temperature.
  • During the first 30 minutes of use, check the motor temperature every 10 minutes. To do this, touch the center section of the motor near the aluminum end bell (silver component).
  • If the aluminum end bell is too hot to touch, stop using the motor and allow it to cool down.
  • If you can hold your hand on the motor for more than 5 seconds, it is safe to continue driving for a few more miles before rechecking the temperature. Repeat steps 1 and 2 until the 8-10 mile break-in period is completed and the motor operates at a cooler temperature. Following this process will help ensure your electric motor is properly conditioned for long-term use.
• CAUTION: Exercise caution while checking the motor. Avoid touching any exposed electrical connections while the power is on.
