4-gauge black battery cable set for EZGO Marathon 1986.5-1994

Fitment:

• EZGO Marathon 1986.5-1994

Features:

• 4-gauge wiring - better for upgrades such as motors, controllers, and solenoids

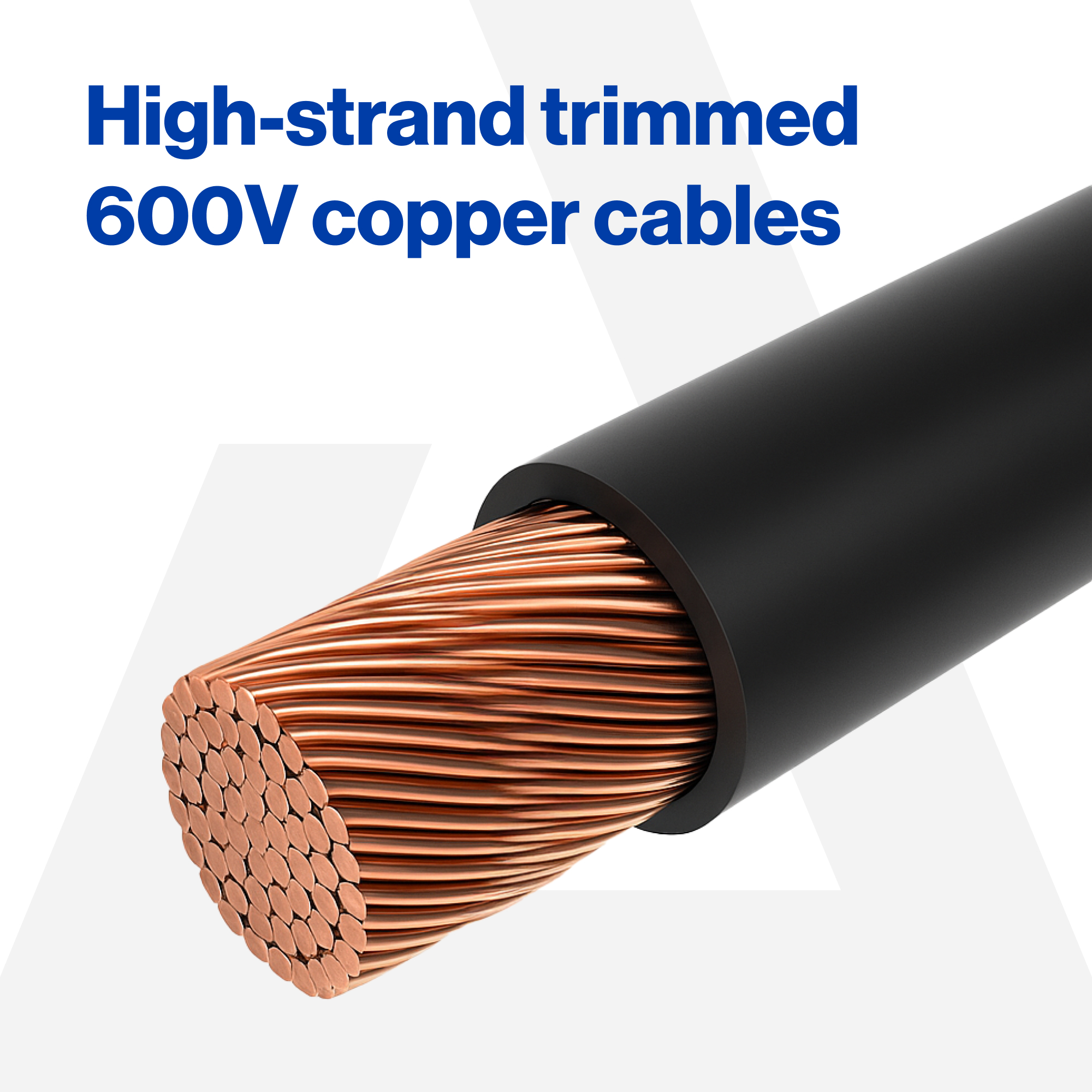

• High strand trimmed copper cables
• All cables are black PVC Insulation jacket

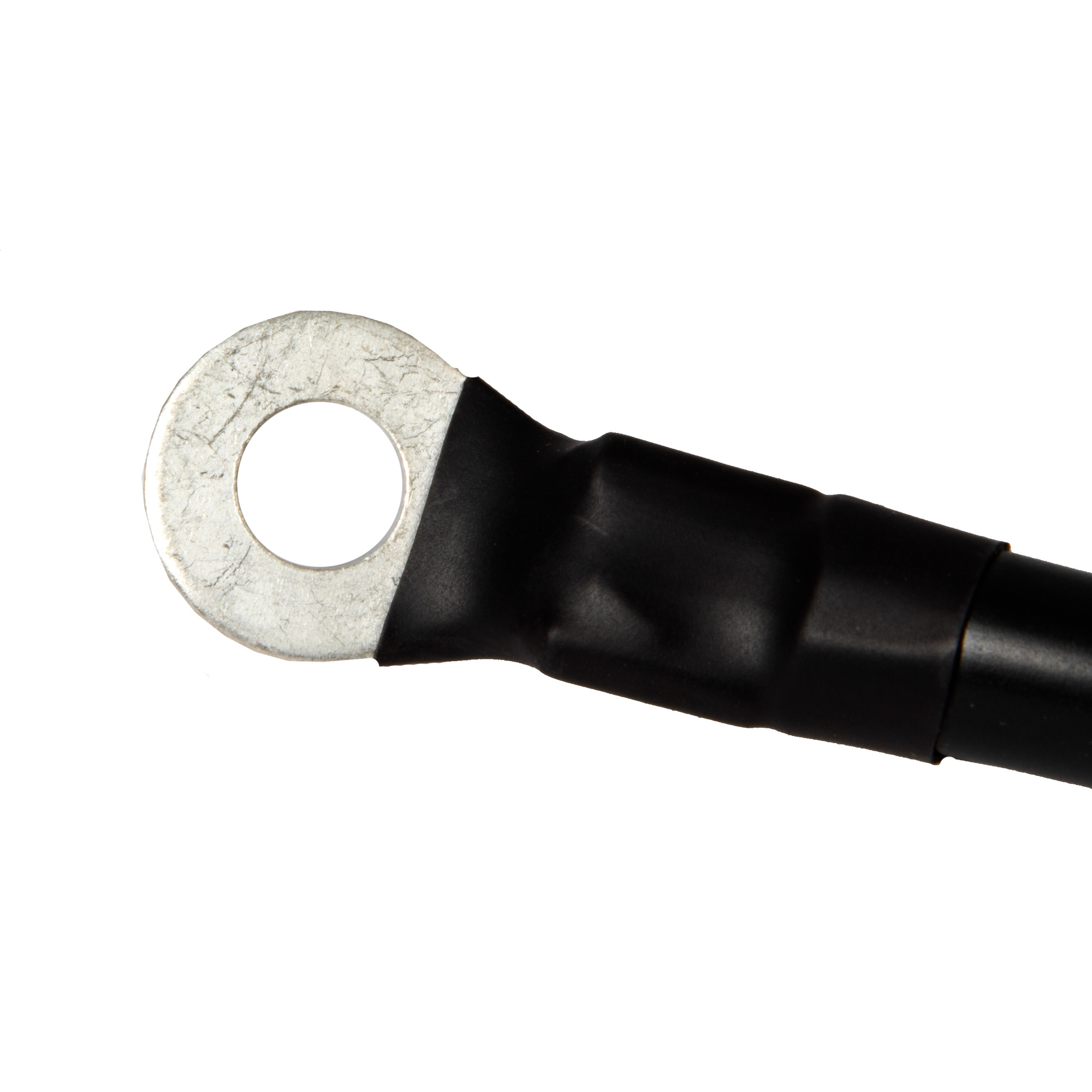

• Pre-cut & Professional Crimped with 5/16” Ring Terminals

Torque Specs:

• 5/16" studs: 8–10 ft-lb
• 1/4" studs: 6–7 ft-lb
• Always Check OEM Spec: Do not over torque which avoids cracking the post and ruining the battery
• After a week or two inspect for any wear or insulation rubbed off and retorque cables

Installation Order:

• Install all series jumpers first (battery to battery)
• Install controller/motor cables
• Positive (+) pack lead on first, negative (–) last
• Apply dielectric grease externally after tightening

Tech Tips:

• Key Off & Charger Unplugged
• Ensure Run/Tow switch is in the TOW position
• Disconnect the negative battery first
• Reconnect the positive first
• Take picture before starting as a reference during installation
• Use Insulated Tools, Protective Eye Wear, Gloves, Remove any jewelry
• Do not mix gauge size cables

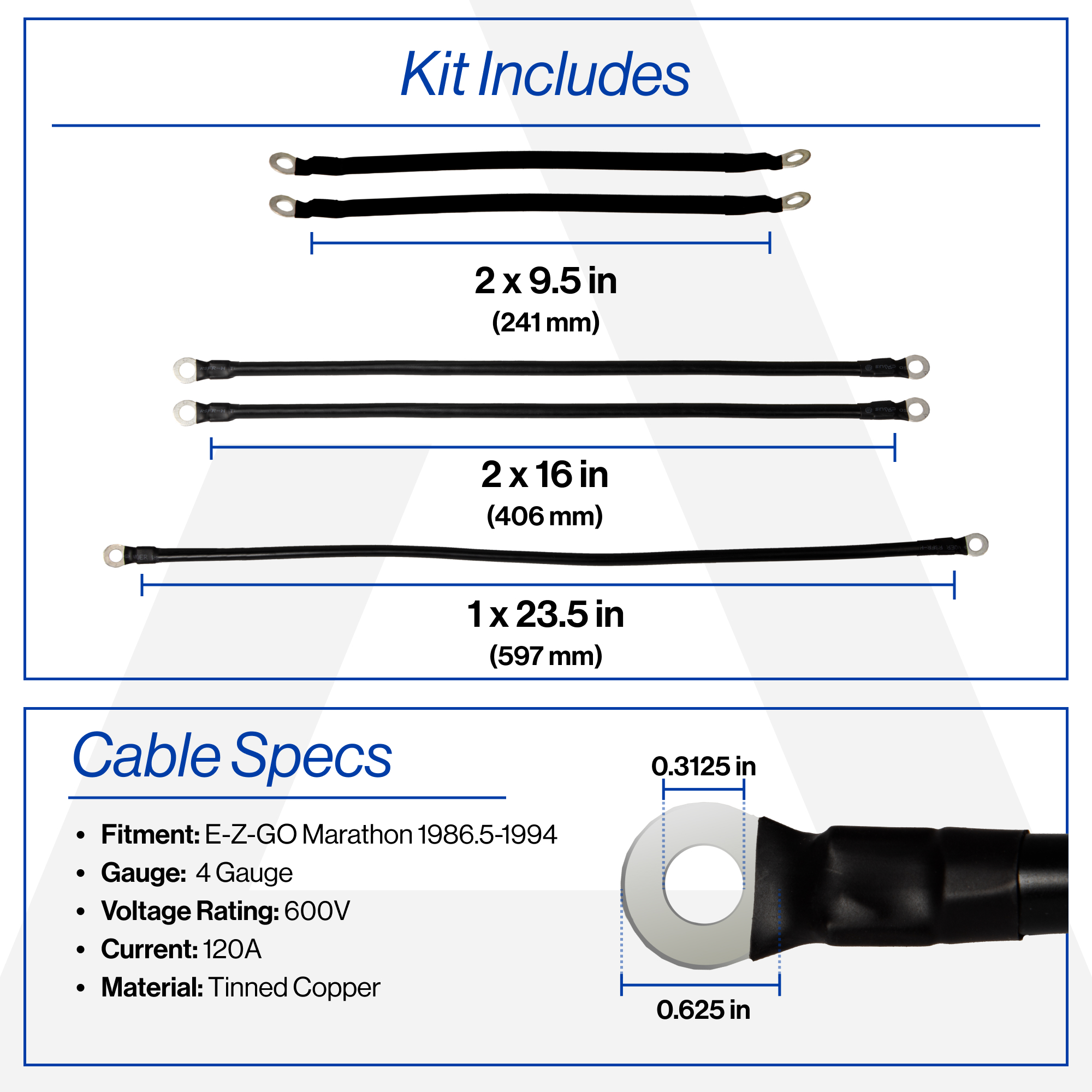

Set Includes:

• (2) 9.5" cables – Part# 17-321
• (2) 16" cables – Part# 17-324
• (1) 23.5" cable – Part# 17-325
